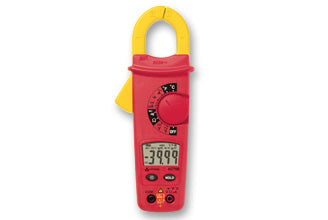

Fluke Amprobe AC75B 3 3/4-digit, AC Clamp W Temp, DMM Functions and Backlight

SKU: AC75B

Not Available

Need more info? Call us +61 8 9335 1718

(item no. 2727885)

The Amprobe AC75B Clamp Meter, Multimeter and Thermometer prepares you for almost any challenge in HVAC, electrical or industrial maintenance applications.

Features

  • 600A AC current
  • Digital thermometer to 400 °C (1000 °F), K-type probe included
  • AC/DC Volts 750 V/1000 V
  • Capacitance to 4000 µA for motor run/start capacitor testing
  • 4000-count large digit display
  • Full overload protection
  • Auto power off
  • Low battery indicator
  • Jaw size 1.3 in (35 mm)

Specifications

FEATURE AC75B
True-rms
AC Voltage 4.000 V, 40.00 V, 400.0 V, 750 V
DC Voltage 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Current 400.00 A, 600 A
DC Current
Micro Amps 400.00 µA, 4000 µA
Resistance 400 O, 4 kO, 40 kO, 400 kO, 4 MO, 40 MO
Continuity
Capacitance 4 nF, 40 nF, 400 nF, 4µF, 40µF, 400 µF, 4mF
Frequency
Temperature -40 °F → 1000 °F (-40 °C → 400 °C)
Accommodates conductors up to 1.3 (35 mm) in diameter
Specifications
AC Current (50/60 Hz): 400 A, 600 A , Accuracy: 0 to 60 A ± (1.9 % + 2 A), 60 to 400 A ± (1.9 % + 1 A), 400 to 600 A ± (2.5 % + 7 A)
Resolution: 0.1 A
400, 4000 µA , accuracy: ±(1.0 %+2 d) -0.6 V to -1000.0 V, Accuracy: ±(1% + 4 dgt)
Resolution: 0.1µA
AC Voltage (50 to 500 Hz): 4 V, 40 V, 400 V, 750 V, Accuracy: ±(1.5 %+5 dgts)
Resolution: 1 mV
DC Voltage: 4 V, 40 V, 400 V, 1000 V, Accuracy: ±(0.9 %+2 dgts)
Resolution: 1 mV
