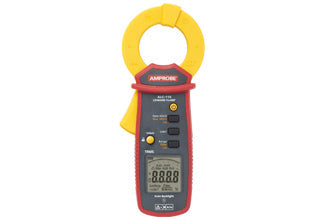

Fluke Amprobe ALC-110 Leakage Current Clamp Rated CAT III

SKU: 4930876
$1,314.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

(item no. 4930876)

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.

Use the ALC-110 to:

  • Measure
    • Earth and differential leakage currents
    • Leakage currents through the earth (PE) conductor
    • Appliance current consumption without interruptions to the circuit
  • Trace the source of earth leakage currents
  • Identify intermittent GFCI trips without switching equipment off
  • Check a system for an electrical break of insulation where current is flowing to the ground
  • Where industrial leakage current testing is required



Specification

Features
Low frequency magnetic fields ≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz
Measurement category CAT III 600 V
True-rms Yes
AC frequency 15 Hz to 1 kHz
Low pass filter 50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter
Limit judgement 0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
Jaw opening 1.2 in (30 mm) max.
Jaw locking Yes
Backlight function Yes
Overload protection 60 A
Auto power off Idle 20 minutes
Auto ranging Yes
Max hold Yes
Data hold Yes
Complies with IEC/EN 61557-13 Yes
Built according IEC/EN 61010-2-032 Yes
