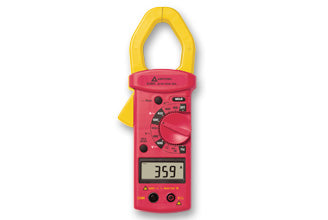

Fluke Amprobe AC68C 3 3/4-digit, AC/DC Clamp Meter, 600a; Freq.,w/ Data Hold & Peak Hold

SKU: 2727919
$769.00
Checkout Secure
Need more info? Call us +61 8 9335 1718


Amprobe AC68C True-rms 600A Clamp Meter measures non-linear load current with true-rms readings.

Features

  • 8 functions/11 ranges
  • Data and AC peak hold
  • DC auto zero
  • Carrying case included
  • 33⁄4 digit, LCD, max reading of 3999
  • 9 V battery
  • Maximum jaw opening: 40 mm (1.57˝)
  • Autoranging for frequency measurement;
  • Low battery indication
  • Auto-power off after 30 minutes
  • Included accessories: test leads, battery, manual and carrying case
  • Manual function and range selection with rotary selector

Specifications

FEATURE AC68C
True-rms
AC Voltage 600 V
DC Voltage 400.00 V, 600 V
AC Current 400.00 A, 600 A
DC Current 400.00 A, 600 A
Micro Amps -
Resistance 4.000 kO
Continuity
Capacitance -
Frequency 4 kHz, 20 kHz
Temperature
Accommodates conductors up to 1.3 (35 mm) in diameter





Specifications
DC Voltage ranges: 600 V
DC Voltage accuracy: ± (0.75 % rdg + 2 dgts)
DC Voltage resolution: 1 V in 600 V range
DC Voltage input impedance: 10 MO
AC Voltage (40-450 Hz) range: 400 V, 600 V
AC Voltage (40-450 Hz) accuracy: ± (1.2 % rdg + 5 dgts)
AC Voltage (40-450 Hz) resolution: 0.1 V in 400 V range
AC Voltage (40-450 Hz) input impedance: 10 MO
DC Current ranges: 400 A, 600 A
DC Current accuracy: ± (2 % rdg + 5 dgts)
DC Current resolution: 0.1 A in 400 A range
AC Current (40-450 Hz): 400 A, 600 A
AC Current (40-450 Hz): ± (2 % rdg + 5 dgts)
AC Current (40-450 Hz): 0.1 A in 400 A range
Frequency (Hz), current and voltage ranges: 4 kHz, 20 kHz
Frequency (Hz), current and voltage accuracy: ± (0.5 % rdg + 5 dgts)
Frequency (Hz), current and voltage resolution: 1 Hz in 4 kHz range
Frequency (Hz), current and voltage sensitivity: 5 A/1 V in 4 kHz range, 5 A/5 V in 20 kHz range

 Download

  • Product Manual
  • Shipping This Item Ships from Fremantle, Perth, Western Australia
    Please allow 2 - 10 days for your order to arrive.

    Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

    Returns are easy.

    simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Description


    Amprobe AC68C True-rms 600A Clamp Meter measures non-linear load current with true-rms readings.

    Features

    • 8 functions/11 ranges
    • Data and AC peak hold
    • DC auto zero
    • Carrying case included
    • 33⁄4 digit, LCD, max reading of 3999
    • 9 V battery
    • Maximum jaw opening: 40 mm (1.57˝)
    • Autoranging for frequency measurement;
    • Low battery indication
    • Auto-power off after 30 minutes
    • Included accessories: test leads, battery, manual and carrying case
    • Manual function and range selection with rotary selector

    Specifications

    FEATURE AC68C
    True-rms
    AC Voltage 600 V
    DC Voltage 400.00 V, 600 V
    AC Current 400.00 A, 600 A
    DC Current 400.00 A, 600 A
    Micro Amps -
    Resistance 4.000 kO
    Continuity
    Capacitance -
    Frequency 4 kHz, 20 kHz
    Temperature
    Accommodates conductors up to 1.3 (35 mm) in diameter





    Specifications
    DC Voltage ranges: 600 V
    DC Voltage accuracy: ± (0.75 % rdg + 2 dgts)
    DC Voltage resolution: 1 V in 600 V range
    DC Voltage input impedance: 10 MO
    AC Voltage (40-450 Hz) range: 400 V, 600 V
    AC Voltage (40-450 Hz) accuracy: ± (1.2 % rdg + 5 dgts)
    AC Voltage (40-450 Hz) resolution: 0.1 V in 400 V range
    AC Voltage (40-450 Hz) input impedance: 10 MO
    DC Current ranges: 400 A, 600 A
    DC Current accuracy: ± (2 % rdg + 5 dgts)
    DC Current resolution: 0.1 A in 400 A range
    AC Current (40-450 Hz): 400 A, 600 A
    AC Current (40-450 Hz): ± (2 % rdg + 5 dgts)
    AC Current (40-450 Hz): 0.1 A in 400 A range
    Frequency (Hz), current and voltage ranges: 4 kHz, 20 kHz
    Frequency (Hz), current and voltage accuracy: ± (0.5 % rdg + 5 dgts)
    Frequency (Hz), current and voltage resolution: 1 Hz in 4 kHz range
    Frequency (Hz), current and voltage sensitivity: 5 A/1 V in 4 kHz range, 5 A/5 V in 20 kHz range

     Download

  • Product Manual
